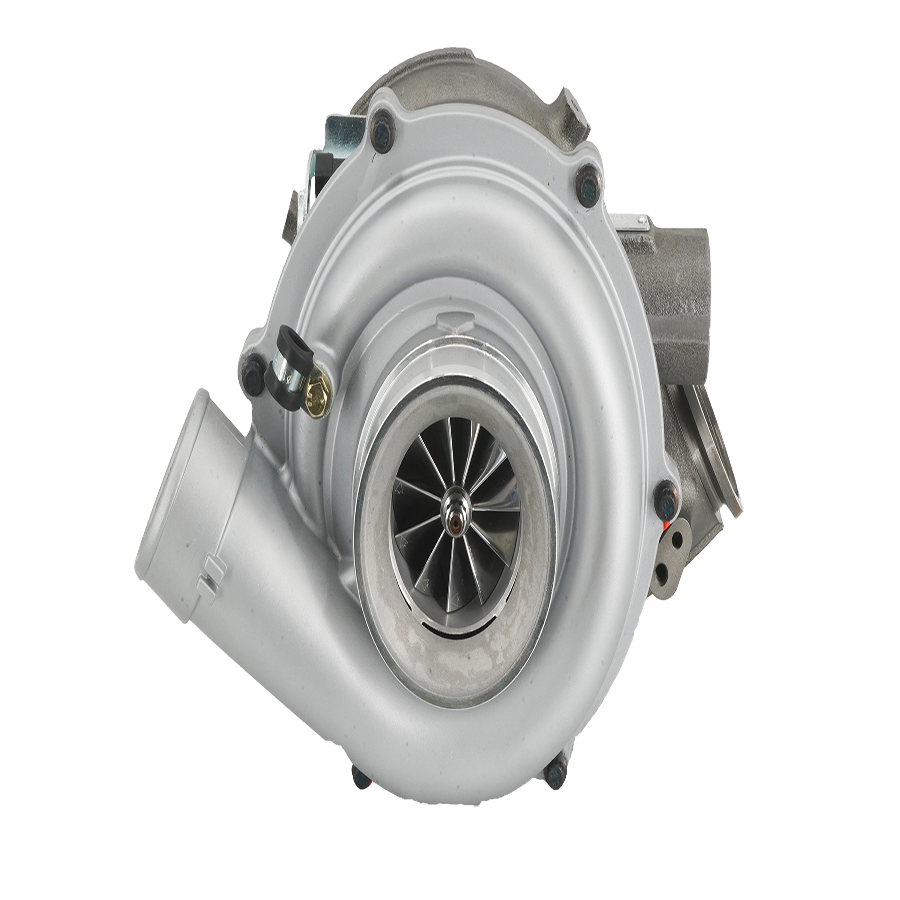

6.0L Stealth 67G2 Turbo

The class-leading charger has the turbine and compressor design to outflow and outmuscle the competition but none of the compromises that you've been conditioned to expect. Whether you're simply replacing a stock turbo on your tune-only truck, looking for a turbo to clean up a mild set of injectors on your 550HP setup, or laying the foundation for a 750HP build you'll be glad you chose the Stealth.

Our custom 67mm compressor is milled out of high-strength 7075 Aluminum. Its 11 blade design is engineered to maximize peak power while minimizing the potential for surge while towing at altitude. Redesigning the compressor to maximize power and driveability meant pouring over every detail from MWE groove width and placement to diffuser clearance.

Fly Past the Competition with the 6.0L Stealth 67G2 for the Ford Powerstroke (2003-2007)





750HP capable in competitive use

67mm CustomBilletCompressor

Largeston the market 77.5x71mm turbine

Stock Appearing

15mm Billet high flow vanes and matched unison ring and proprietarydoll pin spacing

Ported exhaust outlet

Fully Functional Exhaust Brake

Quick Spool-Up = Useable Horsepower

Wide Torque Curve

Distinctive Throaty Howl

12-month Warranty





The 6.0 Stealth 67G2 center section is fitted with a 360-degree thrust bearing to minimize thrust wear during competition use.

The turbine side innovation rivals the compressor side. Our turbine dwarfs the factory turbine and the Garrett Powermax in every way. The turbine inducer is taller, allowing much higher flowing vanes that are actuated using our matched unison ring. The 6.0 Stealth 67G2 features the largest turbine and vanes available in this frame. Increasing turbine size dramatically reduces drive pressure under heavy load, helping you achieve nearly a 1:1 drive to boost ratio under most operating conditions. Controlling drive pressure helps make more power and significantly lowers EGT's.

This Turbo is Designed for you if you...



Daily drive your truck

Reliability and Performance are your top priorities

Tow with your truck

Prefer to simply swap your old turbo out for a new one

Want more power when you need it, but still have excellent street manners!



Add on a Stealth Boost Tester.

Boost leaks can kill diesel engines. They cause higher EGTs, decrease your power, and lower fuel economy. Properly being able to test your entire charged air system is essential to getting peak performance and longevity out of your diesel engine. Charged air systems include everywhere from the turbocharger to the intake manifold. Your intercooler system, Exhaust Gas Recirculation components, and even the Turbocharger compressor cover can all develop boost leaks.This boost tester is exactly what you need if you work on diesel trucks regularly or just want to check the condition of your engine's charge system. Here's what you can get:



Heavy Duty Regulator



Extremely Accurate

Testes Entire Charge system

Precise control over test conditions

Easy to use and read

Premium partsbuilt to last for a lifetime

High-quality seals

Liquid gaugeprevents erratic readings

Metal construction







CNC Precision-Cut Adapter



Perfect Fitment

Clean look

Intelligent design

Madefrom high-quality materials

Made and assembled in the USA











Fitment Specifications





Year

Make

Model

725390-5006, 720523-5003, 743250-5024, 743250-5013, 743250-5025, 743250-5014, GT3782VA, 743250-5014S, 1832159C91, 1845178C98, 720523-9003, 725390-5003, 725390-5003S, 720523-9005, 725390-9001, 725390-9002, 777469-5001S, 170-025-1152, 170-025-0110, 1837984C91, 1837984C94, 1832160C91, 1840054C98, 1870714C91, 5010089C95, 1846764C91, 3C3Z6K682CCRM, 3C3Z6K682AARM, 3C3Z6K682BARM, 3C3Z6K682, CBRM743250-5013S, 743250-9001, 743250-5013, 743250-9002, 743250-9004, 743250-9013, 772441-5001S,170-025-1179,170-025-0111,1832159C91, 1845178C98, 1843761C93, 1854480C91, 1846767C91, 1846765C91, 1845322C91, 4C3Z6K682CDRM, 4C3Z6K682BA, 4C3Z6K682CBRM, 4C3Z6K682AARM, 4C3Z6K682ARM, 4C3Z6K682CCRM, 743250-5014S, 743250-5014, 743250-9005, 772441-5001S, 743250-9014, 170-025-1180, 170-025-0109,1832255C91, 1876493C91, 5010147R93, 5010399R91, 1854593C91, 1858116C91, 5C3Z6K682CCRM, 5C3Z6K682BA, 5C3Z6K682DA, 5C3Z6K682CARM, 5C3Z6K682AA, 5C3Z6K682CA, 5C3Z6K682A







2003 - 2004, 2004.5-2005, 2005.5-2007





Ford

F250





2003 - 2004, 2004.5-2005, 2005.5-2007

Ford

F350
