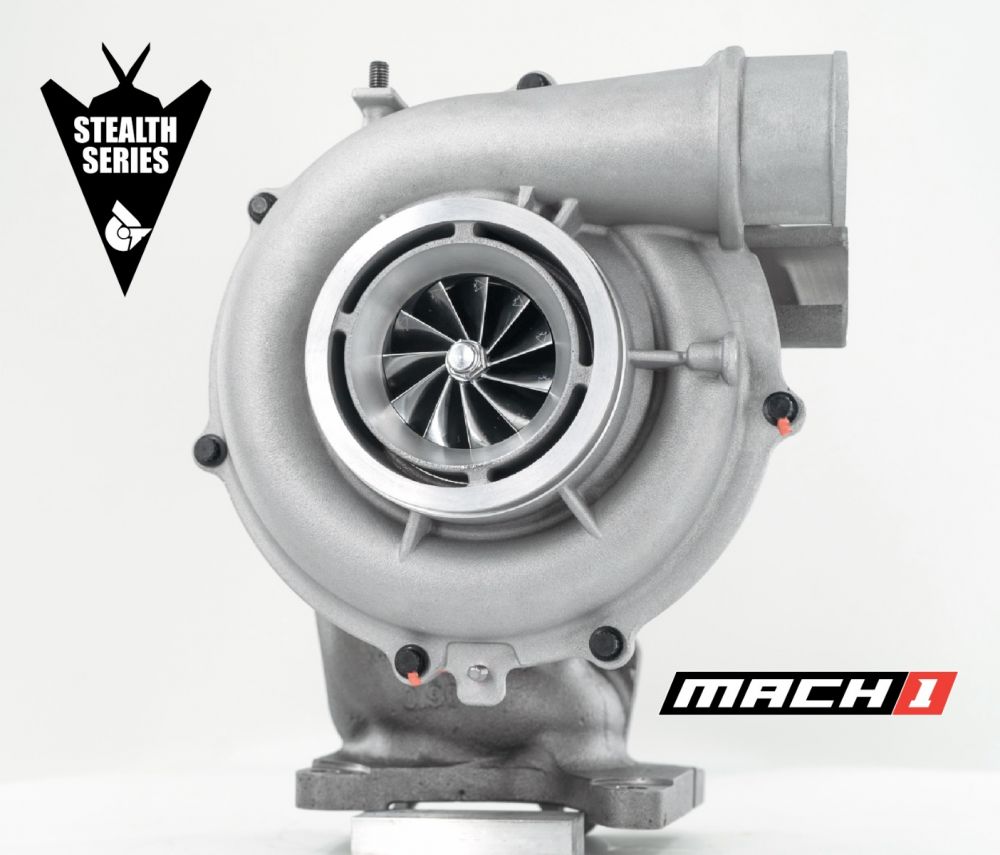

LLY, LBZ, LMM, Stealth Mach 1 Turbo (2004.5-2010)

Stealth Mach 1 - LBZ/LLY/LMM 650rwhp

Easy Install, Snappy Response, EGT control, and Turbine braking

The Stealth Mach 1 Turbo takes a stock appearing LBZ/LLY/LMM turbocharger and overhauls it to meet the demands of producing up to 650rwhp while simultaneously lowing EGTs and the potnetial for compressor surge .

The stock LBZ/LLY/LMM turbocharger runs out of air at about 530rwhp and on extended pulls past 400HP It really struggles to control EGTs. The Stealth Mach 1 extends the useful power curve of the engine out another 120HP to 650rwhp. Furthermore, the Stealth Mach 1 is much better at controlling exhaust gas temperatures under sustained load even when towing up long grades at high power. This is accomplished through the use of our specially designed billet compressor wheel which is matched to a custom high flow turbine assembly. This combination represents the best balance between quick spool-up response for driveability and overall compressor flow to make 650rwhp.

The Stealth Mach 1 Turbo is an easy-to-install upgrade that spools up quickly, controls EGT's under heavy load, allows to turbine braking during towing scenarios, and kicks ass when leaned on. Your stock fuel LLY, LBZ, or LMM should make 600 RWHP with this turbo and the proper tuning.

Features & Benefits

650+ RWHP Peak
11-Blade 63mm upgraded billet compressor wheel
High flow vane technology (HFV)
9-Blade highflow turbine wheel
Distinct 9-Blade turbine whistle
360-degree Thrust Bearing
Grooved journal bearings that allow added oil capacity
Lighting fast spool-up
Direct Bolt-On
Great for Daily Driving/Towing
Add on a Stealth Boost Tester.

Boost leaks can kill diesel engines. They cause higher EGTs, decrease your power, and lower fuel economy. Properly being able to test your entire charged air system is essential to getting peak performance and longevity out of your diesel engine. Charged air systems include everywhere from the turbocharger to the intake manifold. Your intercooler system, Exhaust Gas Recirculation components, and even the Turbocharger compressor cover can all develop boost leaks. This boost tester is exactly what you need if you work on diesel trucks regularly or just want to check the condition of your engine's charge system. Here's what you can get:

Heavy Duty Regulator
Extremely Accurate
Testes Entire Charge system
Precise control over test conditions
Easy to use and read
Premium parts built to last for a lifetime
High-quality seals
Liquid gauge prevents erratic readings
Metal construction
CNC Precision-Cut Adapter
Perfect Fitment
Clean look
Intelligent design
Made from high-quality materials
Made and assembled in the USA


Fitment Specifications

Year

OEM

Models

OEM Part #(s)

2004.5-2010

Chevy

2500, 3500

736554-5014 736554-0011 736554-5011 736554-9011 736554-0001 736554-5001 736554-9001 736554-0002 736554-5002 736554-9002 736554-0003 736554-5003 736554-9007 736554-9008 736554-9014 736554-9003 736554-0004 736554-5004 736554-9004 736554-0005 736554-5005 736554-9005 736554-0006 736554-5006 736554-9006 736554-0007 736554-0008 736554-0014 790032-9003 7900329003 19329915 97387896 98011735 98021617 98065854 12639460 736554-5015 736554-9015 759622-5005 759622-9005 763333-5005 763333-9005 790032-5004 790032-9004 848212-5001 8482125001 848212-900 8482129001 98011735 19329916 98021617 98065854 8980033661 8980033662 8980117351 98003366 759622-5006 759622-9006 759622-5 759622-0002 759622-5002 759622-9002 759622-5005 759622-0005 759622-9005 R759622-5005 R759622-9005 848212-5001 8482125001

2004.5-2010

GMC

2500, 3500

Measurement Specifications

Compressor - Wheel Inducer

Compressor - Inducer Bore

Compressor - Wheel Blade Count

Turbine - Wheel Exducer

Turbine - Wheel Inducer

Turbine - Wheel Blade Count

Peak Power

63mm

64mm

11

67mm

73mm

10

650 RWHP


Maximum Recommended Boost Pressure (psi) for VVT Stealth64

Altitude (ft)

Barometric Pressure (psi)

Baro (inHG)

Max Safe Boost (psi)

-1000

15.2

31.02

38

0

14.7

29.88

36.8

1000

14.2

28.86

35.5

2000

13.7

27.84

34.3

3000

13.2

26.83

33

4000

12.7

25.81

31.8

5000

12.2

24.8

30.5



Your new turbo will spool-up quickly, feel responsive, and most importantly will move for air into your engine! That means more top-end power without sacrificing driveability.

* ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENT.
