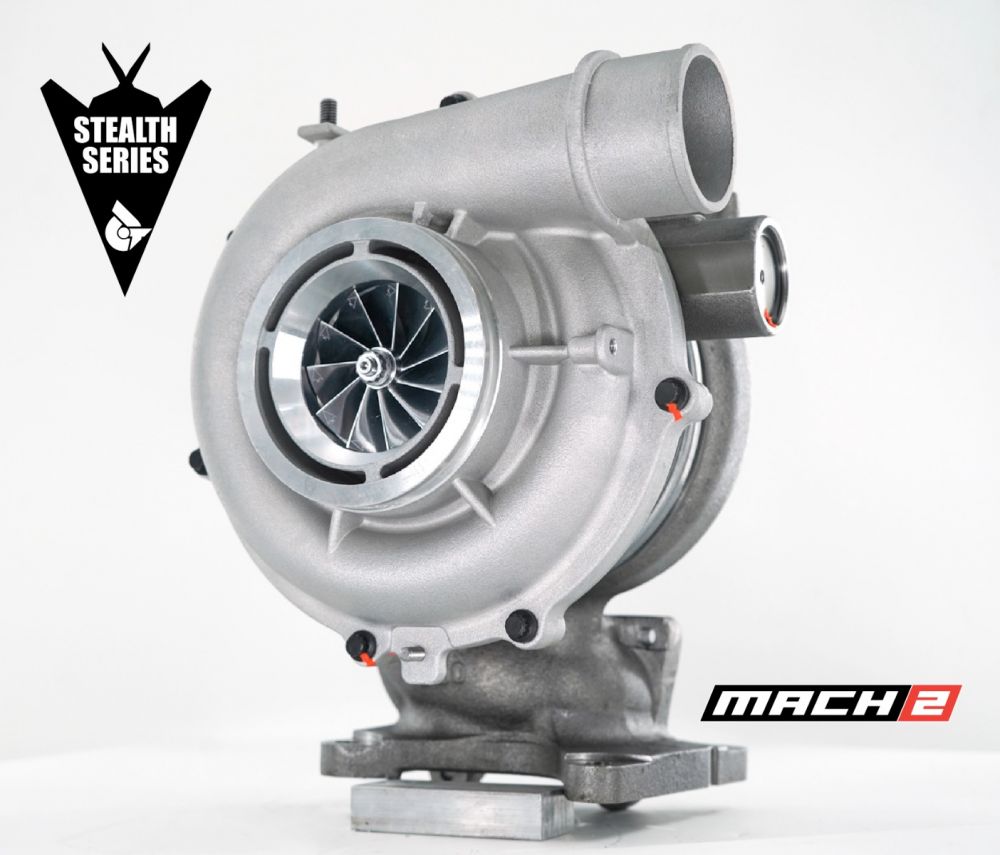

LLY, LBZ, LMM, Stealth Mach 2 Turbo (2004.5-2010)

Fly Under the Radar! With the Stealth Mach 1 2004.5-2010 Duramax Turbo Upgrade.

Building this line of Stealth's meant designing a turbo that would be safe to tow with, fun to drive every day and perform at competitions. If you think street-able, clean, stock-appearing power is cool, then this is the turbo for you!

The Stealth Mach 2 takes a stock appearing LLY/LBZ/LMM turbocharger and overhauls it to be the Ultimate Duramax VVT drop-in. This means your new turbo will spool-up quickly, feel responsive, and most importantly will move for air into your engine! That means more top-end power without sacrificing driveability.

This turbocharger features HFV technology! HFV or High Flow Vane technology is our proprietary customization of the variable vane cage and nozzle ring assembly. This advancement allows the use of a larger turbine wheel for maximum high-load efficiency. Stealth turbos featuring our HFV upgrade are capable of producing more power, spooling up quicker, and managing EGTs better than those limited with factory nozzle rings.

LLY, LBZ, LMM Stealth Mach 2 Turbo: Featuring HFV (High Flow Vane) Technology

Airflow to support 800HP
Up to 650 RWHP with stock emissions equipment and basic supporting mods
Tested in competition setups with extensive supporting mods to make 800+ RWHP
HFV (High Flow Vane) Technology
Custom Vane/Nozzle Ring Assembly
Exclusive design produced in-house specific to this application
Taller and wider custom profile vanes provide superior efficiency and drive pressure
Retain factory exhaust brake and quicker throttle response
Custom Billet Compressor Wheel
11-Blade extended tip wheel provides big air and a wide efficiency range
Tow without the risk of surge (even while lugging)
Lightweight and high strength
Provides 81 lbs/min mass airflow compared to 60lbs/min stock
Oversized Custom Turbine Wheel
Lowers drive pressures at high load
Efficiency improved to better control EGT
10-blade design produces a distinctive exhaust sound
Brand New parts and electronics
360-degree Thrust Bearing
Grooved journal bearings that allow added oil capacity
Direct Bolt-On
No Core Charge


Add on a Stealth Boost Tester.

Boost leaks can kill diesel engines. They cause higher EGTs, decrease your power, and lower fuel economy. Properly being able to test your entire charged air system is essential to getting peak performance and longevity out of your diesel engine. Charged air systems include everywhere from the turbocharger to the intake manifold. Your intercooler system, Exhaust Gas Recirculation components, and even the Turbocharger compressor cover can all develop boost leaks. This boost tester is exactly what you need if you work on diesel trucks regularly or just want to check the condition of your engine's charge system. Here's what you can get:

Heavy Duty Regulator
Extremely Accurate
Testes Entire Charge system
Precise control over test conditions
Easy to use and read
Premium parts built to last for a lifetime
High-quality seals
Liquid gauge prevents erratic readings
Metal construction
CNC Precision-Cut Adapter
Perfect Fitment
Clean look
Intelligent design
Made from high-quality materials
Made and assembled in the USA
Fitment Specifications

Year

OEM

Models

OEM Part #(s)

2004.5-2010

Chevy

2500, 3500

736554-5014 736554-0011 736554-5011 736554-9011 736554-0001 736554-5001 736554-9001 736554-0002 736554-5002 736554-9002 736554-0003 736554-5003 736554-9007 736554-9008 736554-9014 736554-9003 736554-0004 736554-5004 736554-9004 736554-0005 736554-5005 736554-9005 736554-0006 736554-5006 736554-9006 736554-0007 736554-0008 736554-0014 790032-9003 7900329003 19329915 97387896 98011735 98021617 98065854 12639460 736554-5015 736554-9015 759622-5005 759622-9005 763333-5005 763333-9005 790032-5004 790032-9004 848212-5001 8482125001 848212-900 8482129001 98011735 19329916 98021617 98065854 8980033661 8980033662 8980117351 98003366 759622-5006 759622-9006 759622-5 759622-0002 759622-5002 759622-9002 759622-5005 759622-0005 759622-9005 R759622-5005 R759622-9005 848212-5001 8482125001

2004.5-2010

GMC

2500, 3500

Measurement Specifications

Compressor - Wheel Inducer

Compressor - Inducer Bore

Compressor - Wheel Blade Count

Turbine - Wheel Exducer

Turbine - Wheel Inducer

Turbine - Wheel Blade Count

Peak Power

67mm

68mm

11

71mm

78mm

10

800 RWHP

Maximum Recommended Boost Pressure (psi) for VVT Stealth 67G2

Altitude (ft)

Barometric Pressure (psi)

Baro (inHG)

Max Safe Boost (psi)

-1000

15.2

31.02

41.8

0

14.7

29.88

40.4

1000

14.2

28.86

39.1

2000

13.7

27.84

37.7

3000

13.2

26.83

36.3

4000

12.7

25.81

34.9

5000

12.2

24.8

33.6
