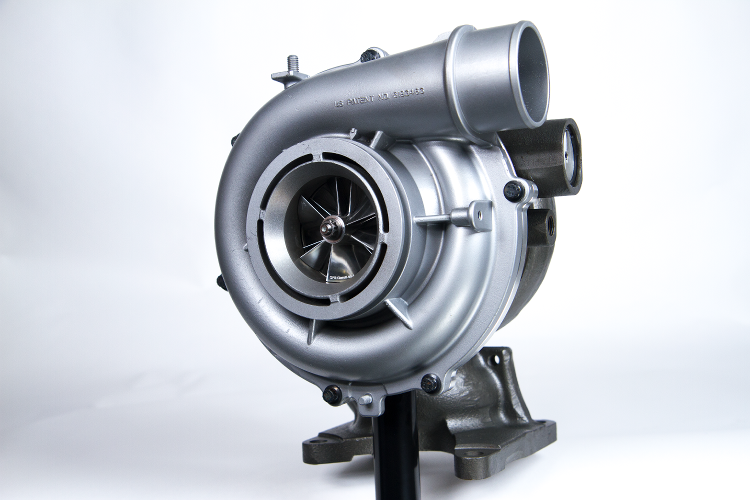

L5P / L5D Stealth Mach 1 (64) Turbo (2017-2019)

Order your upgraded turbo today! The L5P Stealth 64 is the most versatile drop-in turbo ever bolted to the 2017, 2018, and 2019 6.6L L5P Duramax. While capable of providing enough airflow to support up to 700 RWHP this stock appearing unit still lights quick and is great for daily driving, towing, and putting Powerstrokes in their place.

This turbocharger features HFV technology! HFV or High Flow Vane technology is our proprietary customization of the variable vane cage and nozzle ring assembly. This advancement allows the use of a larger turbine wheel for maximum high-load efficiency. Stealth turbos featuring our HFV upgrade are capable of producing more power, spooling up quicker, and managing EGTs better than those limited with factory nozzle rings.

Your truck is going to experience increased performance across a wide operating range due to our HFV assembly, oversized turbine wheel, and billet compressor wheel. Built from brand new parts, this turbocharger wont require a core charge. The optional actuator is pre-calibrated and the entire turbo comes ready for installation. You should strongly consider custom tuning to go with this turbocharger upgrade. Deletes are not required. We have made up to 650 RWHP when matching this turbo with our Custom Emissions Equipped Tuning.

L5P Stealth 64: Boost Starts HERE!



Airflow to support 700HP



Up to 650 RWHP with stock emissions equipment and basic supporting mods

Tested in competition setups with extensive supporting mods to make 700+ RWHP

41 psi boost @ Sea Level







Custom Billet Compressor Wheel



64mm 11-Blade wheel



Provides a wide efficiency range

Allows you to tow without the risk of surge





Lightweight and high strength







Provides 74lbs/min mass airflow compared to 60lbs/min stock

No Surge (Even when lugging)







Oversized Custom Turbine Wheel



Low drive pressures at high load

Efficiency improved to better control EGT

10-blade design produces a distinctive exhaust sound







HFV (High Flow Vane) Technology



Custom Vane/Nozzle Ring Assembly

Exclusive design produced in-house specific to this application

Taller and wider vanes match larger turbine to provide superior high-load efficiency

Retain factory exhaust brake and quicker throttle response









Brand New parts and electronics



No Core Charges







Designed and spec'd by Tuners



Easy for any custom tuner to work with

DuramaxTuner will help your custom tuner with required settings if need be





This turbo is designed for you if...



You already have, or plan on installing customtuning

Daily drive your truck

Have Reliability and Performance astop priorities

Tow with your truck

Want More Power andexcellent street manners!



Do you have a 2020 or 2021 L5P Duramax? Check out our L5P Stealth 64 for your truck HERE!

Do you need an Actuator?

If you're wondering whether or not you shouldbuy an actuator to compliment your Stealth turbo, allow us to share our thoughts. The L5P actuator has a very low failure rate in the field. The fact that it's well cooled and not in close proximity to the hot parts of the turbo means that it's out of harm's way. Unless you're experiencing codes that indicate actuator issues or know for a fact that your actuator is somehow damaged, we would suggest saving your money and retaining your factory actuator.

Add on a Stealth Boost Tester.

Boost leaks can kill diesel engines. They cause higher EGTs, decrease your power, and lower fuel economy. Properly being able to test your entire charged air system is essential to getting peak performance and longevity out of your diesel engine. Charged air systems include everywhere from the turbocharger to the intake manifold. Your intercooler system, Exhaust Gas Recirculation components, and even the Turbocharger compressor cover can all develop boost leaks.This boost tester is exactly what you need if you work on diesel trucks regularly or just want to check the condition of your engine's charge system. Here's what you can get:



Heavy Duty Regulator



Extremely Accurate

Testes Entire Charge system

Precise control over test conditions

Easy to use and read

Premium partsbuilt to last for a lifetime

High-quality seals

Liquid gaugeprevents erratic readings

Metal construction







CNC Precision-Cut Adapter



Perfect Fitment

Clean look

Intelligent design

Madefrom high-quality materials

Made and assembled in the USA





Important Notice:

This turbo uses a customized nozzle ring and/or shroud plate. Its been engineered to provide amazing response and performance.

This turbo must only be operated with tuning that uses stock Minimum and Maximum Vane Position tables. Failure to do so can lead to excessive exhaust pressure and boost which may shorten the life of the turbo or engine and may void the turbo warranty.

Damage caused as a result of non-stock vane position tuning modifications will be the responsibility of the owner, not Calibrated Power Solutions Inc. If you have any questions or concerns please contact CPS at 815-568-7920.



Warranty: All Stealth Series turbos offer our Unlimited Mile, 1-year manufacturer warranty for quality and craftsmanship. For warranty inquiries please contact sales@duramaxtuner.com

The Stealth L5P 64Turbo by Duramaxtuner.com is specifically designed for the 2017, 2018, and 2019 Chevy Silverado and GMC Sierra 2500 and 3500 models. It replaces OEM Part #s 12709701044, 11547786, 12683985, 12689094
